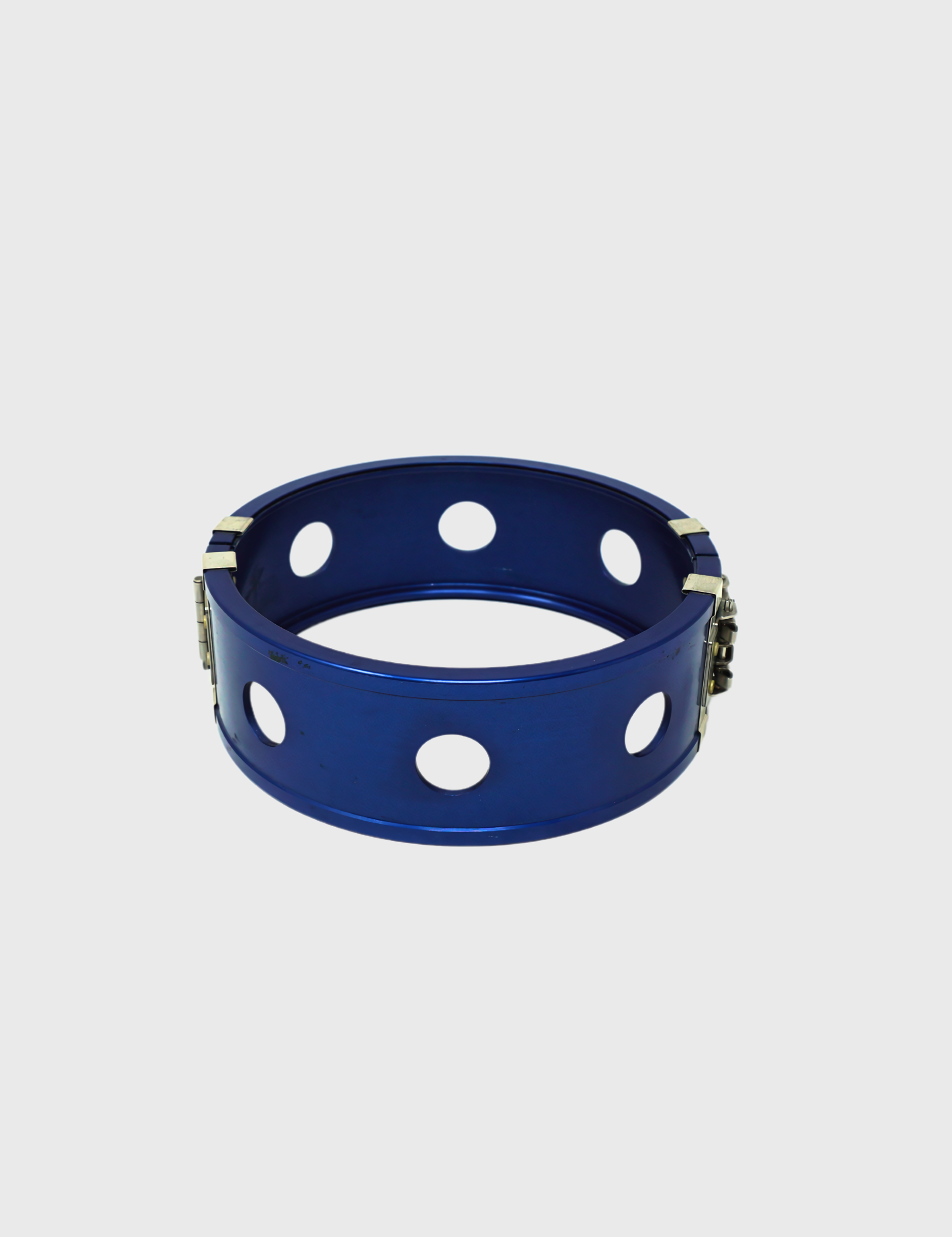

AW2020/21 Series Aerospace Tube Connector
AW2020/21 Series Aerospace Tube Connector
- Clamshell coupling design intended to be used with a Shroud Coupling (AW2021) for a double wall flexible joint
- Sizes 40, 48, 64, 80 for Inner Coupling.
- Sizes 56, 64, 80, 96 for Shroud Coupling
- Operating pressure: 125 PSIG, proof pressure: 250 PSIG,
burst pressure: 375 PSIG - Operating temperature: -65°F to 200°F (dependent on O-Ring material)
- Use with AdelWiggins double wall ferrule adapters
- Capable of 4° total misalignment in joint
- Approximately .6 inch of axial movement between ferrule faces
- Available in Aluminum
